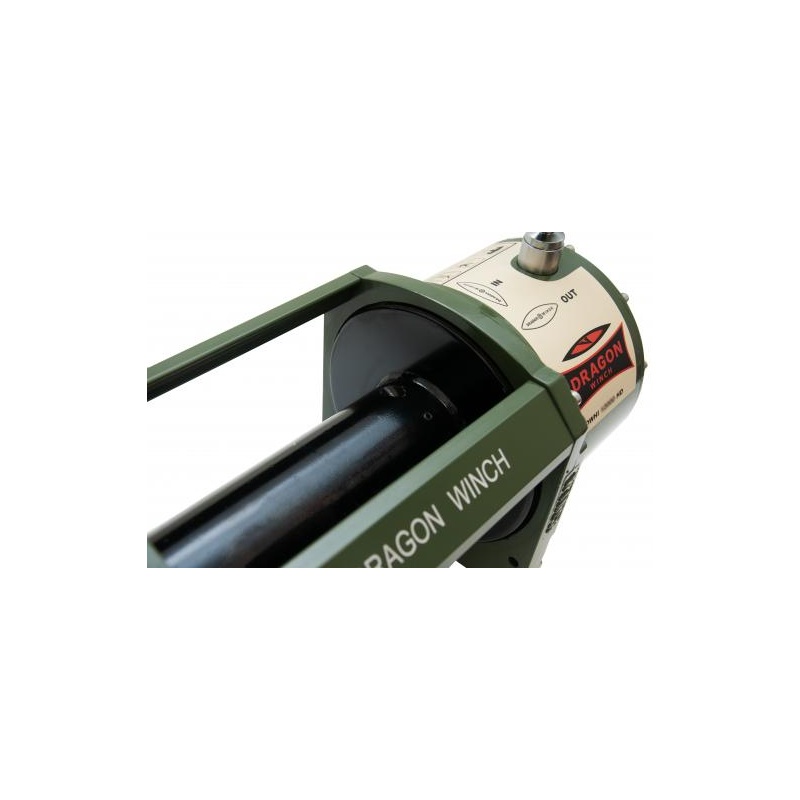

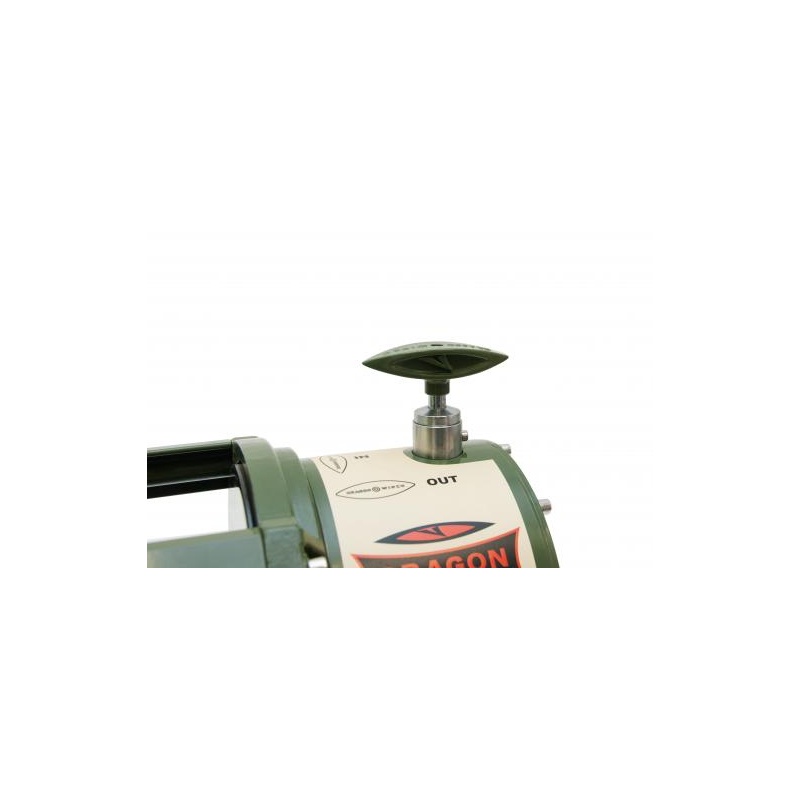

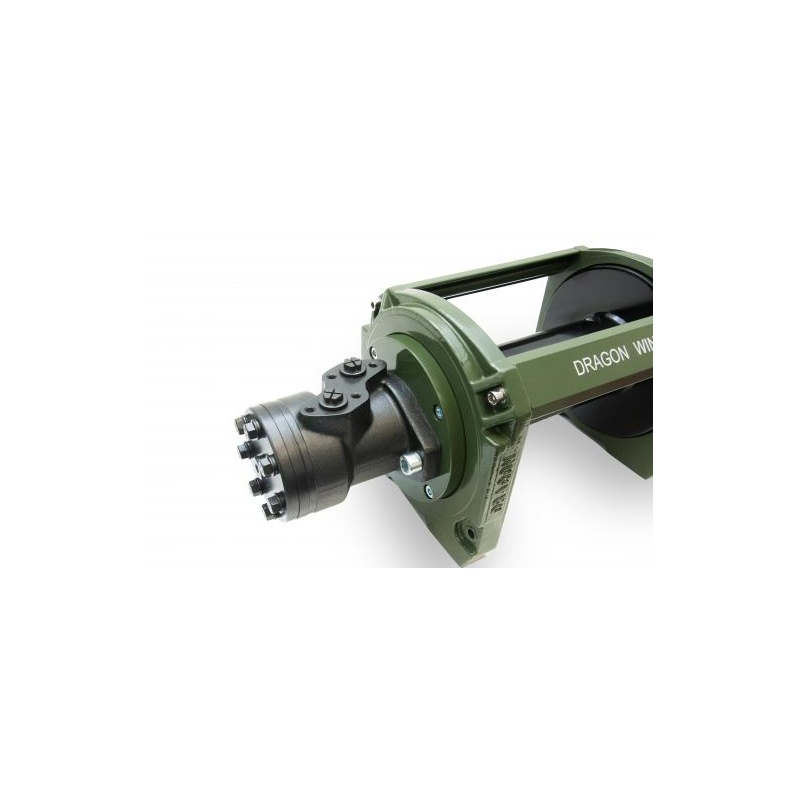

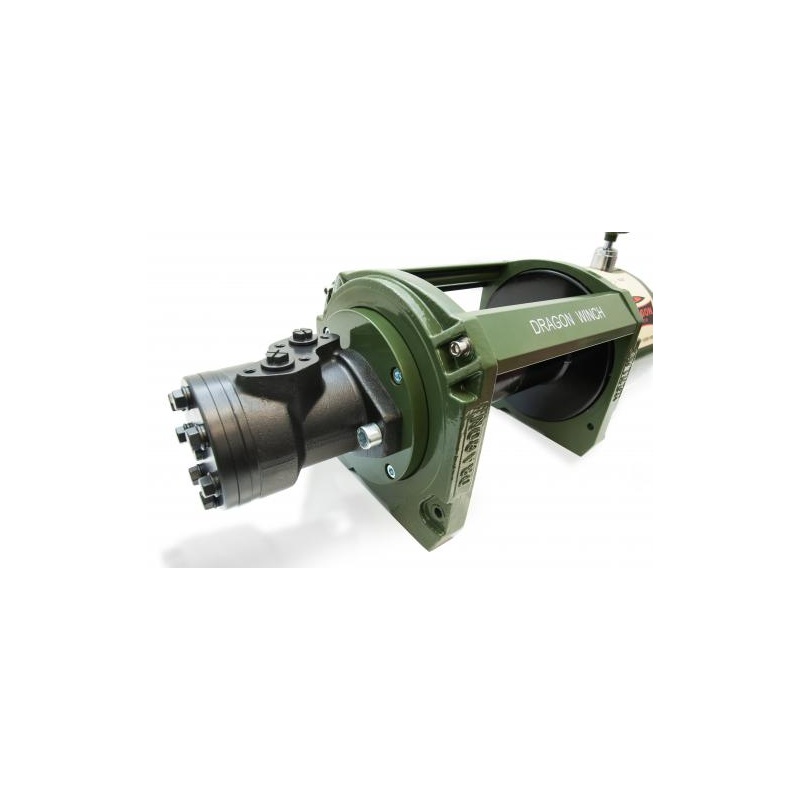

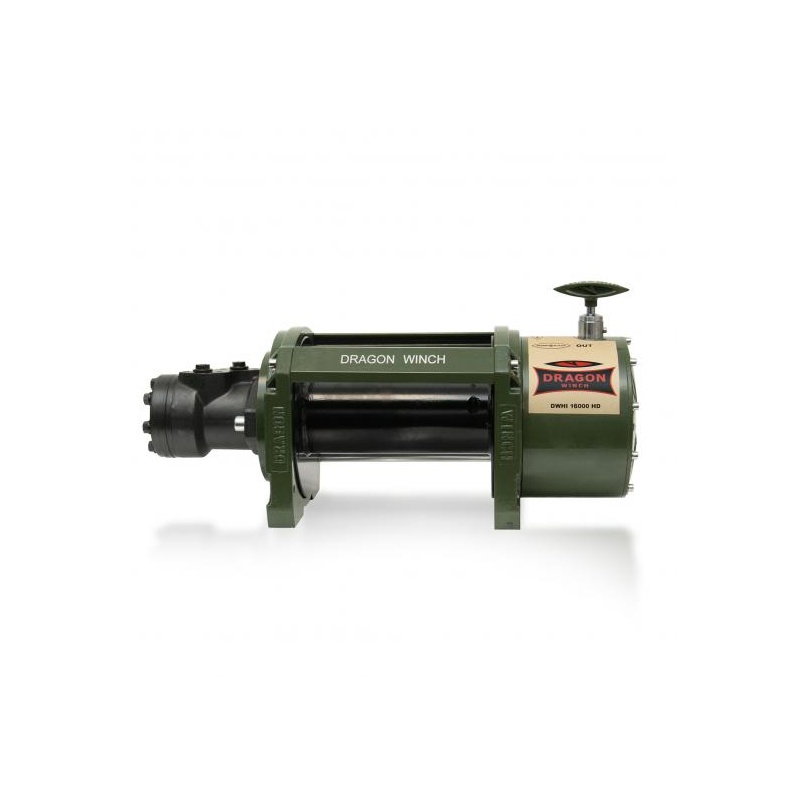

Hydraulic winch Dragon Winch Hidra 16000 HD

Hydraulic winch Dragon Winch Hidra 16000 HD

Designed for the following vehicles: trucks, lorries, tow trucks, hydraulically powered vehicles, special vehicles

Hydraulic
Net weight [kg]: 72
Pulling speed: 16000 lbs / 7257 kg
Transmission: two-stage planetary gearbox
Brake system: dynamic
Fixing screw spacing [L x W]: 225 x 115, 225 x 167
Number of fixing screws [pcs]: 8
Winch dimensions [L x W x H]: 590 x 269 x 217
Oil pressure: 17.5Mpa
Oil flow [l/min]: 60
Drum capacity: 31 m
Number of rope layers: 4

Pulling force depending on the cable layer:
First cable layer: 7257 kg
last cable layer: 4944 kg

Cable winding speed:
first cable layer: 4.2 m/min
last cable layer: 5.6 m/min

The winch is equipped with (included in the kit)
• hook
• roller guides
• fixing screws
• steel cable (self-winding on models DWHI 12000, 16000, 20000. On model DWHi 240 HD the cable is wound)
