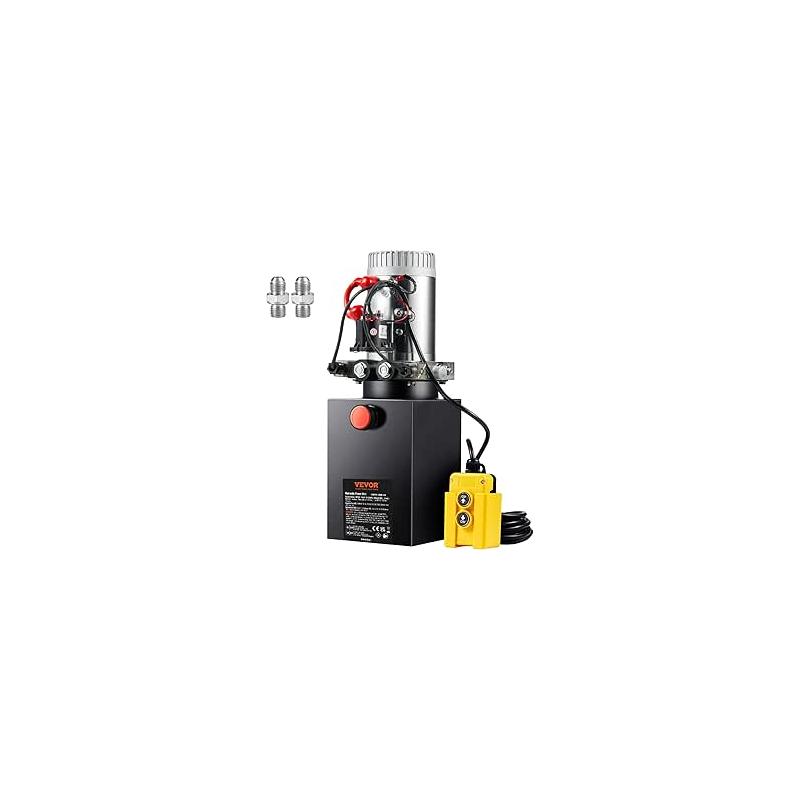

12V DC DOUBLE ACTING TRAILER POWERPACK 4.5L TANK 7M CABLE

12vdc double acting power pack designed especially for trailer, mobile home and caravan applications.

Powerpack comes complete with double solenoid for double acting hydraulic systems.

Powerpack has 7m lead for extra flexibility for installation.

7pin connector attachment for quick connection .

3m coiled cable for extra reach.

12V 0.75cc PUMP, 4.5L OIL TANK, 3LPM @ 200BAR

Product Features:

12V DC DOUBLE ACTING POWER UNIT
FOR TRAILER APPLICATIONS
4.5L OIL TANK
7m LENGTH LEAD
0.75cc

2 Button detachable pendent on a 4 metre lead

Suitable for all double acting applications

With many added features such as detachable pendent for added security, removable plastic motor cover and a variation on which relief valve spring is fitted your are getting an exceptionally good quality product at a very competitive price.

12VDC Double Acting power pack will require a high capacity battery and a suitable in-line fuse for normal operation.

The motor is designed for intermittent use (S3) which is defined as a sequence of identical cycles of 10 minute duration. The cycle comprises a period of on-load (td) operation in which the motor may reach its maximum permitted temperature, followed by an off-load (tm) of time, insufficient for the motor to return to ambient temperature.

The value of S3 on this motor equates to 7% or 42 seconds of on-load operation in a ten minute period.

SPECIFICATION

12V DOUBLE ACTING POWERPACK

FOR TRAILER APPLICATIONS

4.5L TANK

7m LEAD

7PIN ATTACHMENT FOR QUICK CONNECTION

3M COILED CABLE

FOR TRAILER, CARAVAN, MOBILE HOME AND A SIMILAR APPLICATIONS
