Hydraulic winch Dragon Winch Hidra 12000 HD

Hydraulic winch Dragon Winch Hidra 12000 HD

Designed for the following vehicles: trucks, lorries, tow trucks, hydraulically powered vehicles, special vehicles

Hydraulic
Net weight [kg]: 55
Pulling speed: 12000 lbs / 5443 kg
Transmission: two-stage planetary gearbox
Brake system: dynamic
Fixing screw spacing [L x W]: 225 x 115, 225 x 167
Number of fixing screws [pcs]: 8

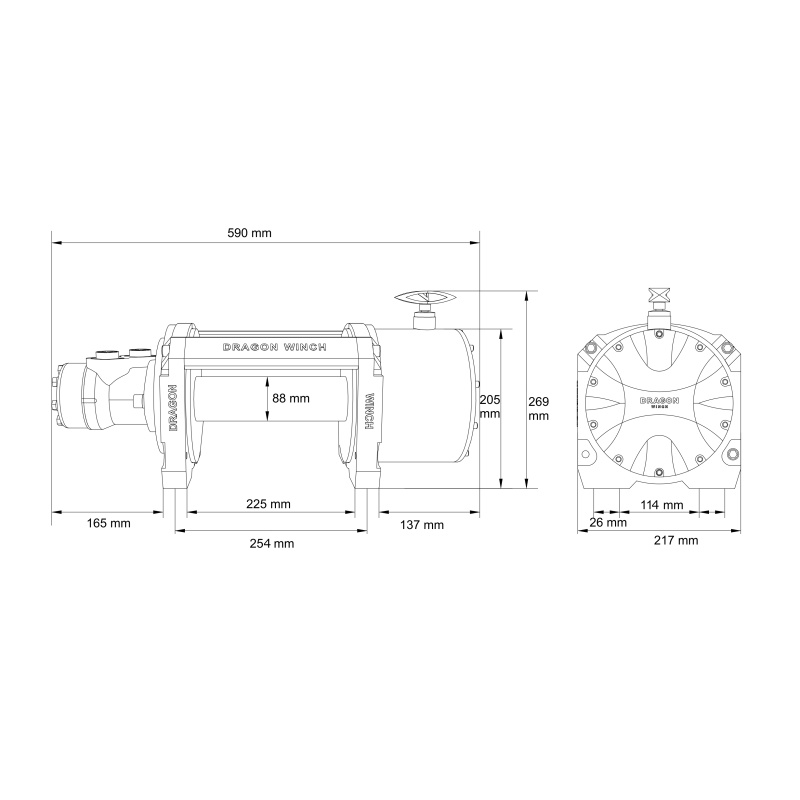

Winch dimensions [L x W x H]: 590 x 269 x 217
Oil pressure: 16
Oil flow [l/min]: 40
Drum capacity: max 45 m
Number of rope layers: 5

Pulling force depending on the cable layer:
first cable layer: 5443 kg
last cable layer: 2851 kg

Cable winding speed:
first cable layer: 4.4 m/min
last cable layer: 6.8 m/min

The winch is equipped with (included in the kit)
• hook
• roller guides
• fixing screws
• steel cable (self-winding on models DWHI 12000, 16000, 20000. On model DWHi 240 HD the cable is wound)
