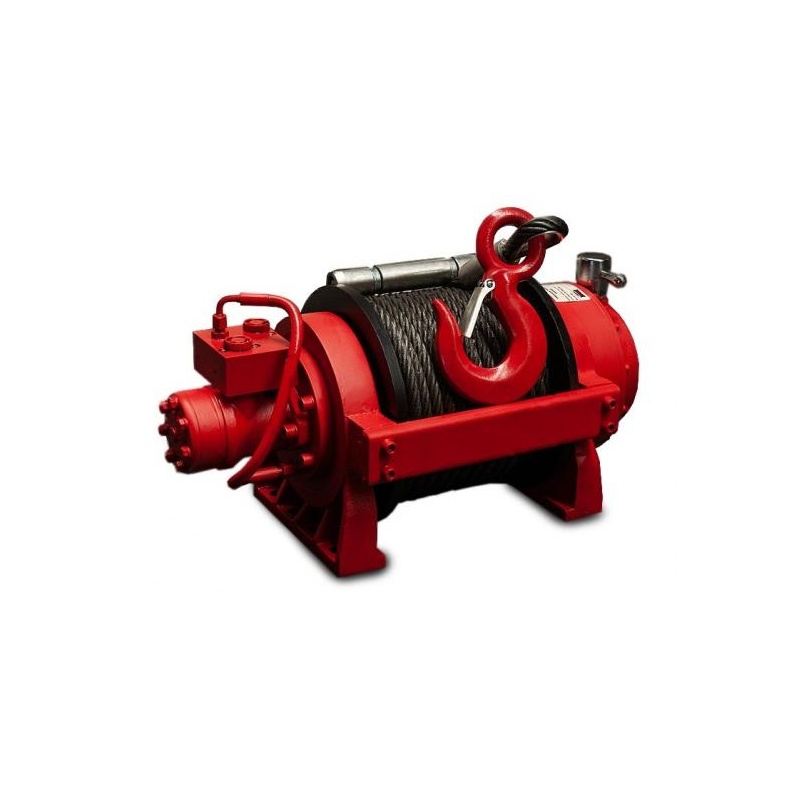

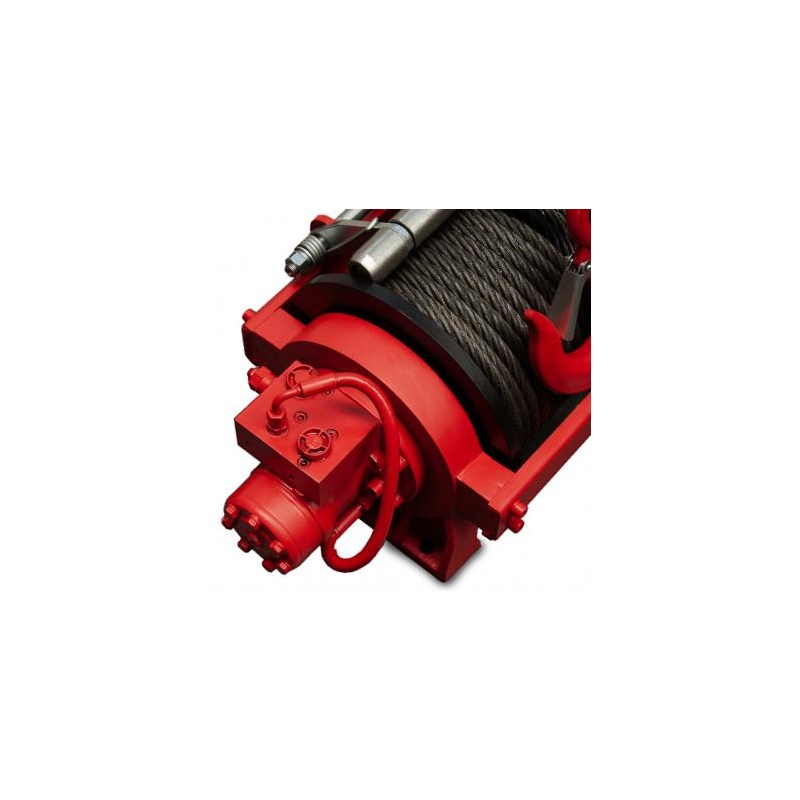

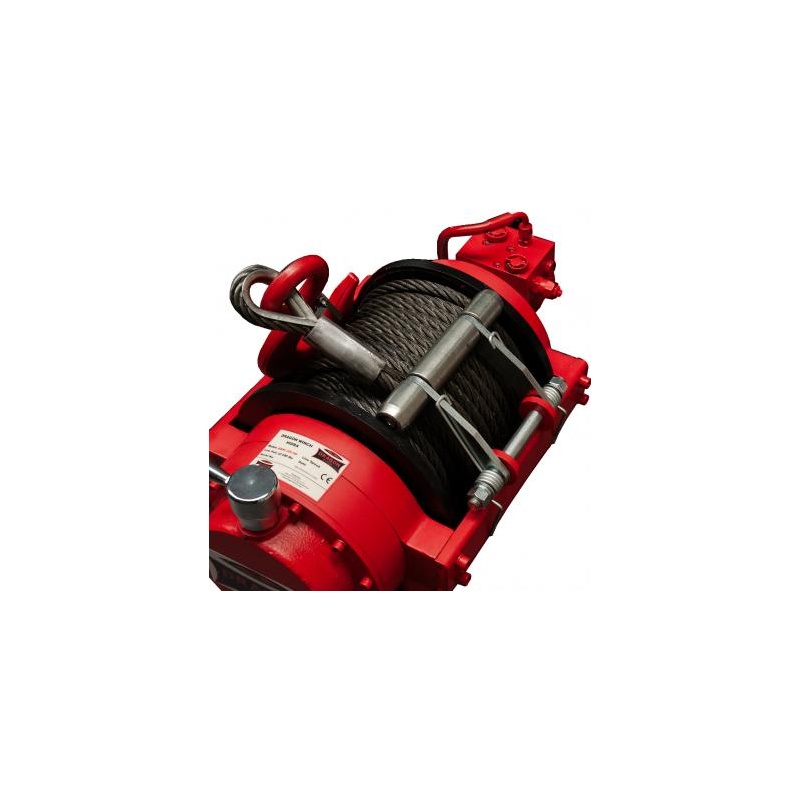

Hydraulic winch Dragon Winch Hidra 240 HD (without rope)

Hydraulic winch Dragon Winch Hidra 240 HD

Designed for the following vehicles: trucks, lorries, tow trucks, hydraulic powered vehicles, special vehicles

Hydraulic
Net weight [kg]: 200
Pulling speed: 24000 lbs / 10886 kg
Transmission: two-stage planetary gearbox
Brake system: hydraulic disc
Fixing screw spacing [L x W]: 375 x 192 x 64
Number of fixing screws [pcs]: 8
Winch dimensions [L x W x H]: 660 x 384 x 349
Oil pressure: 16Mpa
Oil flow [l/min]: 15-60
Drum capacity: 40 m
Rope speed: 5 m/min

The winch is equipped with (included in the kit)
• hook

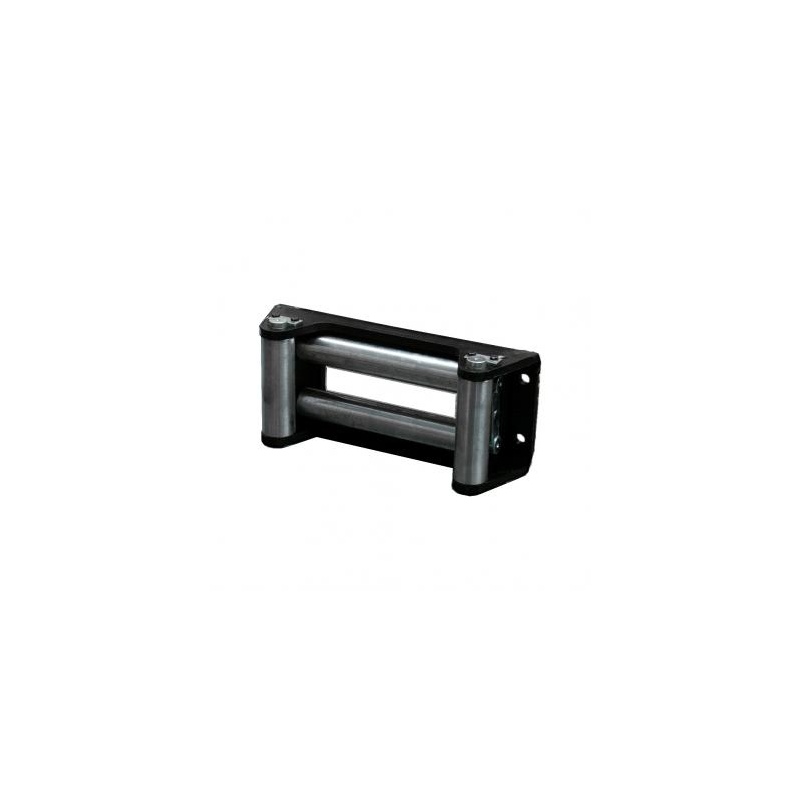

• roller guides
• fixing screws
• steel cable (self-winding on models DWHI 12000, 16000, 20000. On model DWHi 240 HD the cable is wound)
