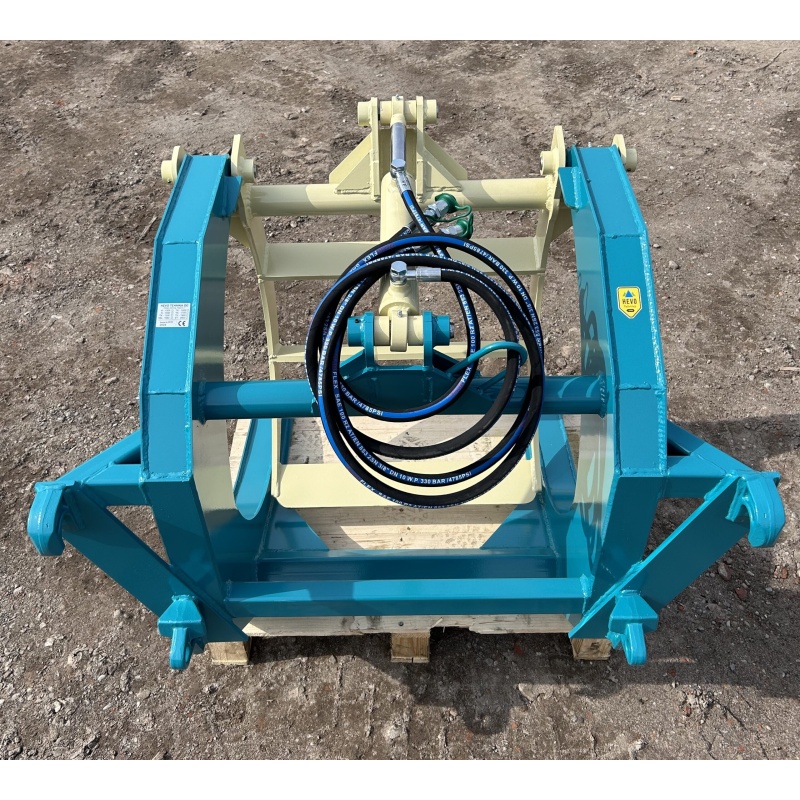

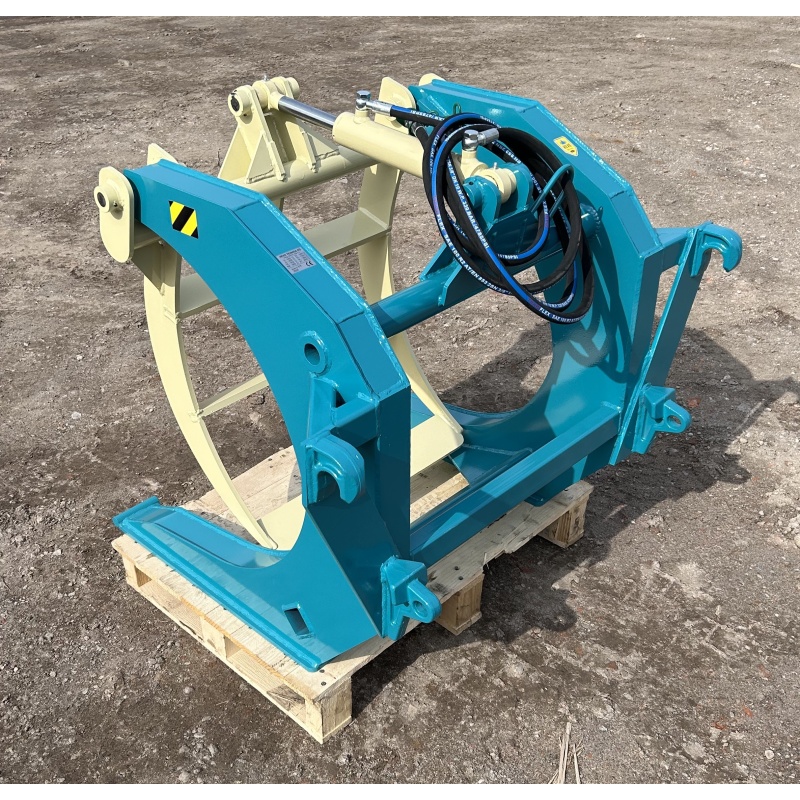

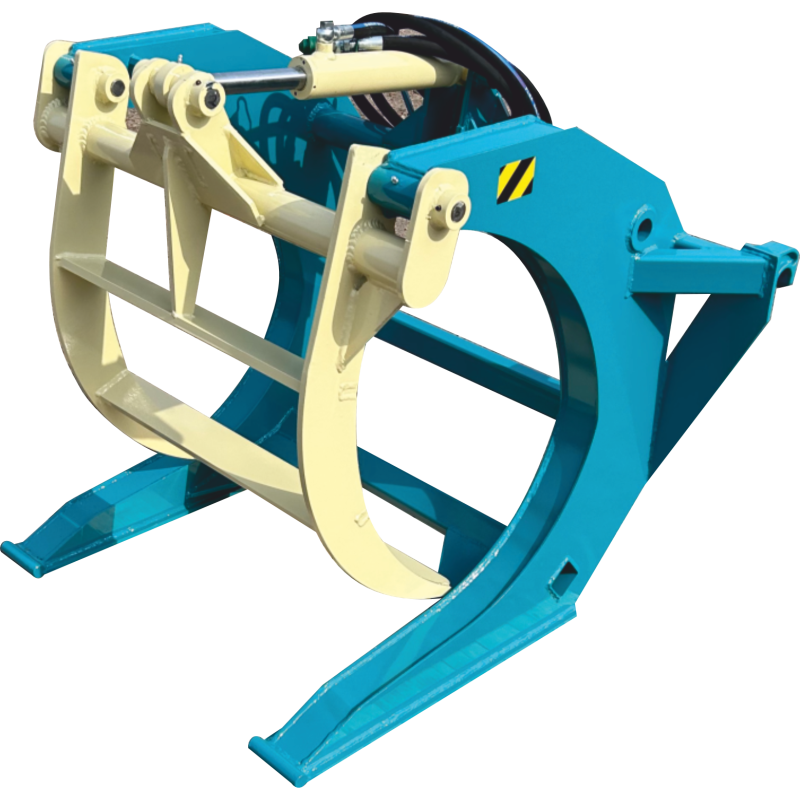

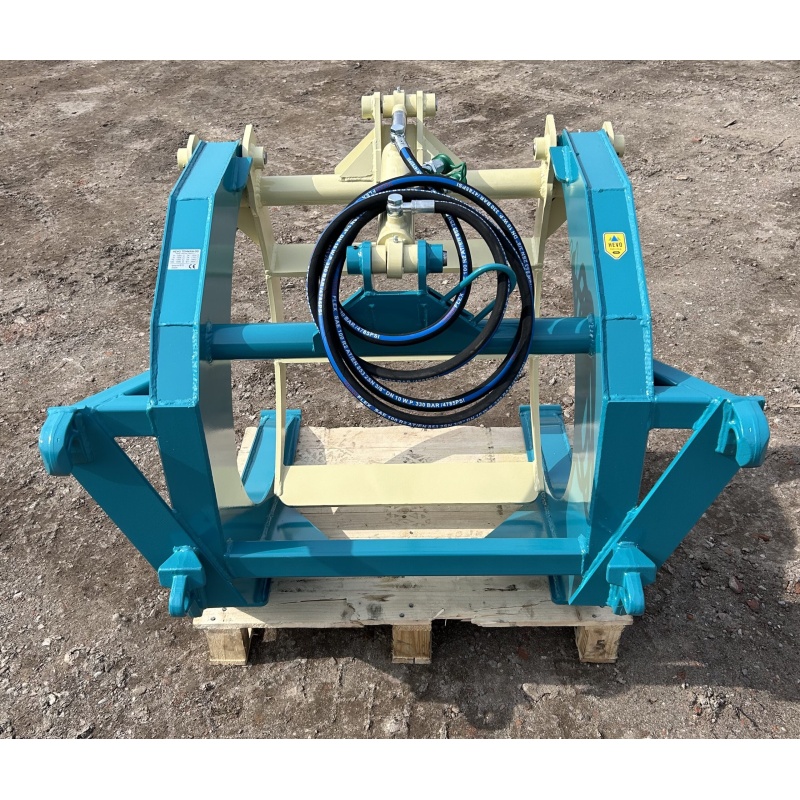

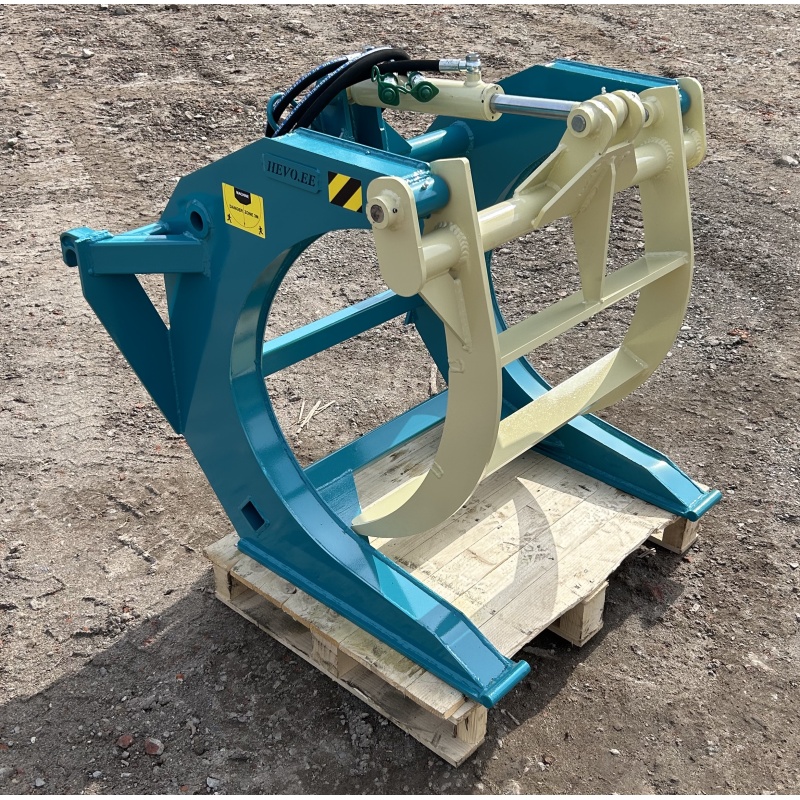

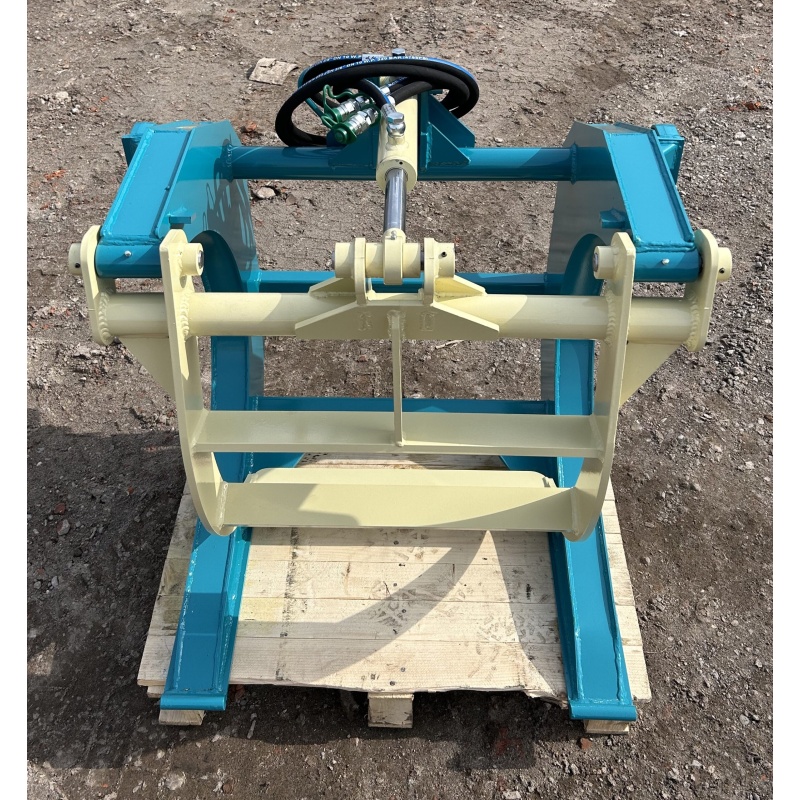

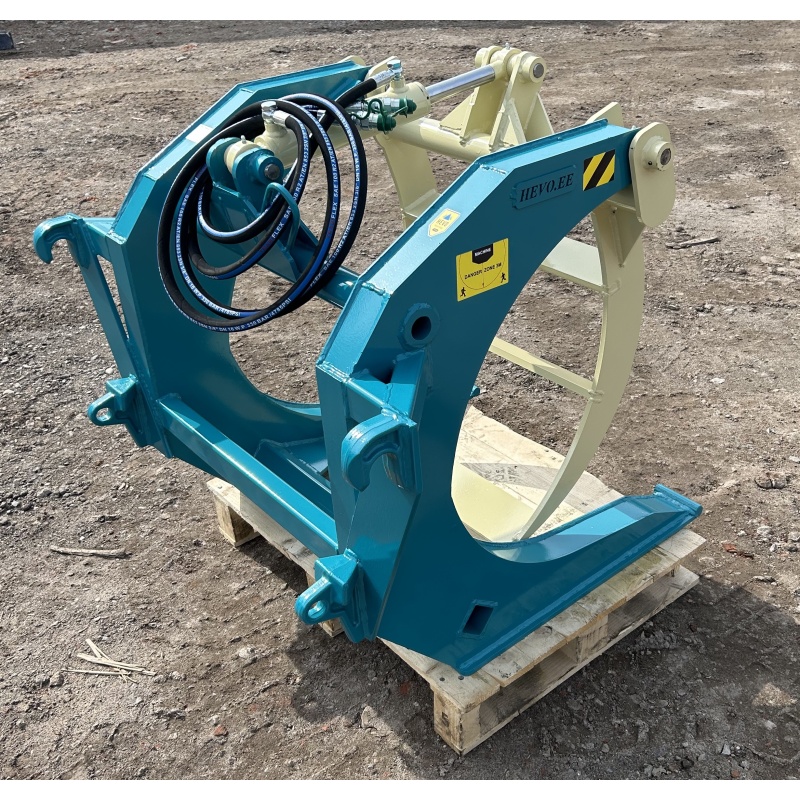

VSLH1000 skid steer loader log grapple
Unit: tk
Qty: Out of Stock
Delivery time: 14-21 tööpäeva
*Overall width of the grapple 800 mm, height 945 mm
*Maximum opening range 760 mm
*Hydraulic hoses included
*We add fasteners according to the loader type
*Grapple weight 165 kg
*Designed for loaders with a lifting capacity of up to 800 kg
*NB! Various hydraulic quick coupler FASTER adapters (avant, multione, etc.) are not included!
The VSLH1000 skid steer loader log grapple is designed for moving and transporting logs in forestry work and at the warehouse. Suitable for tractor loaders from 15 hp. The grapple is moved by one cylinder in the middle. Fasteners can be added according to the loader type. The most common is the EURO attachment, but over the years more than 35 different attachment types have been used.
A grapple is very good for storage work in a company engaged in the production of firewood. The grapple can be used to lift raw material onto feed tables, unload loads. At the same time, it is also good for sorting work by squeezing, for example, a single log between the grapple's beak and lower branches.
Agricultural enterprises have also successfully used the grapple on a telescopic loader, for example, and have collected a lot of brushwood from the edges of ditches in fields. The VSLH1000 log grab for a small loader is a good and durable tractor auxiliary tool for forestry work on farms. Easy to use and suitable for many different tractors.
In most cases, the product is made to order. As a rule, the stock product is without attachments, we will add them later according to the type of loader. When ordering from the e-shop, be sure to write the desired attachment type in the additional note box!
NB! Various FASTER hydraulic quick coupler adapters (avant, multione, etc.) are not included!
Height 105 mm, thickness 8 mm, holes 12 mm
Hole spacing 157.14 mm
125,00 €
Height 170 mm, thickness 20 mm, holes 18 mm
Hole spacing 198.33 mm
248,00 €
Width 720 mm, depth 560 mm, height 460 mm
Hardox blade
Attachment according to the type of loader
Weight 65 kg
1050,00 €
*Overall dimensions: height 720 mm, depth 450 mm
*Maximum opening range: 700 mm
*Max. permissible mounting width for TKA 1200 model: 950 mm
*Hydraulic hoses included
*Weight: 145 kg
*Capacity: 0.23 m³
*Designed for compact tractor loaders
Note: Various FASTER hydraulic quick-connect adapters (Avant, MultiOne, etc.) are not included!
1650,00 €
*Overall dimensions: height 720 mm, depth 620 mm
*Maximum opening range: 700 mm
*Max. permissible mounting width for TKA 1200 model: 950 mm
*Hydraulic hoses included
*Weight: 170 kg
*Capacity: 0.4 m³
*Designed for compact tractor loaders
Note: Various FASTER hydraulic quick-connect adapters (Avant, MultiOne, etc.) are not included!
2000,00 €
