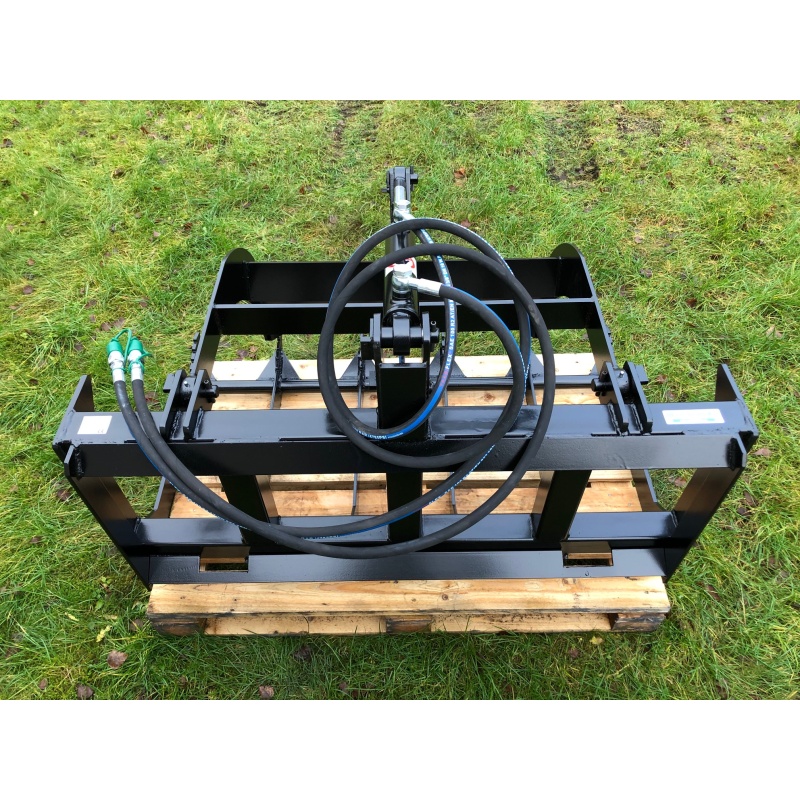

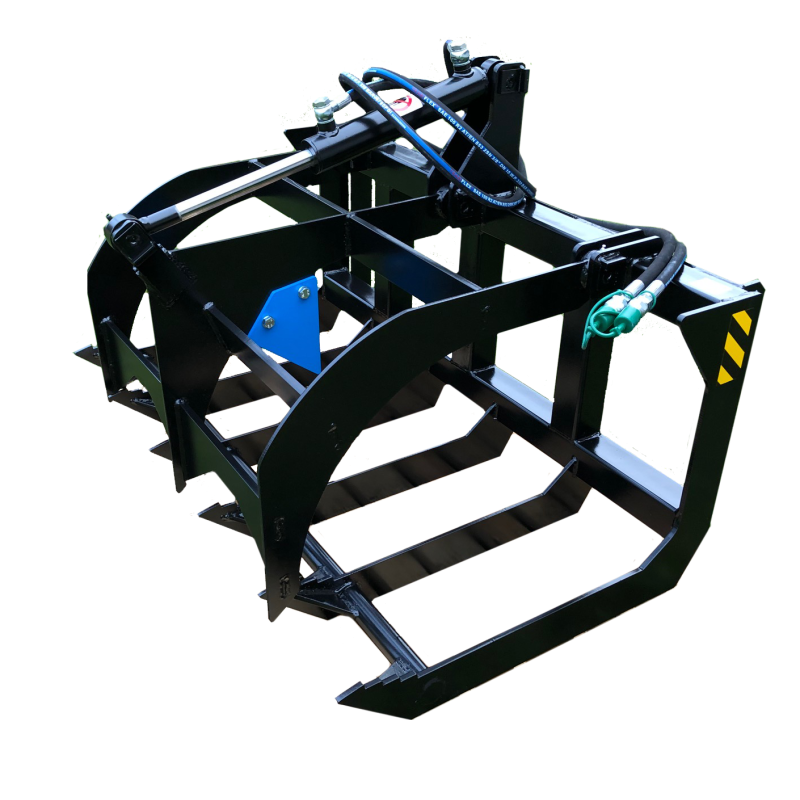

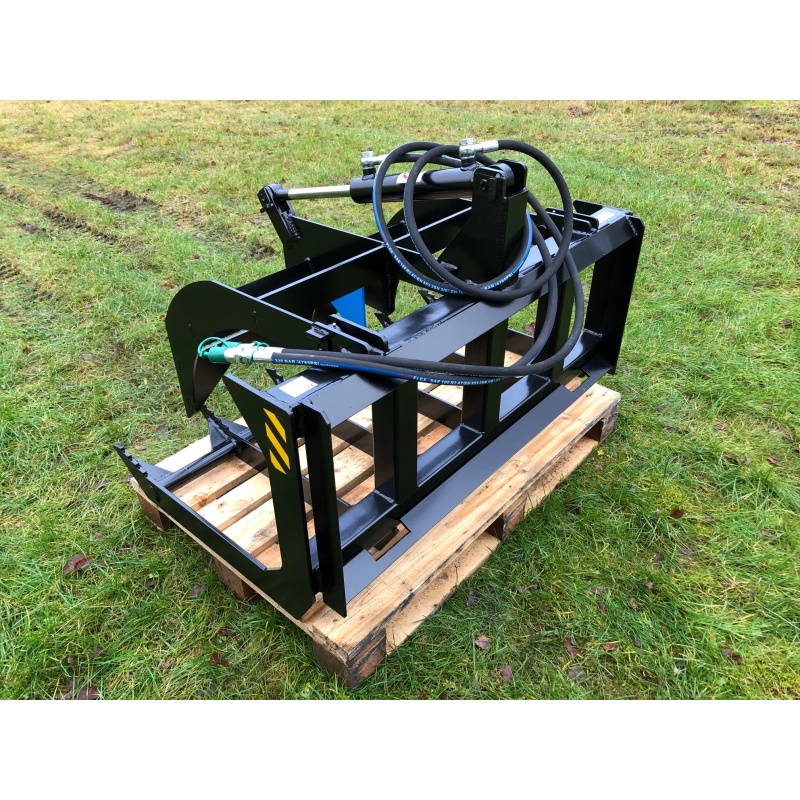

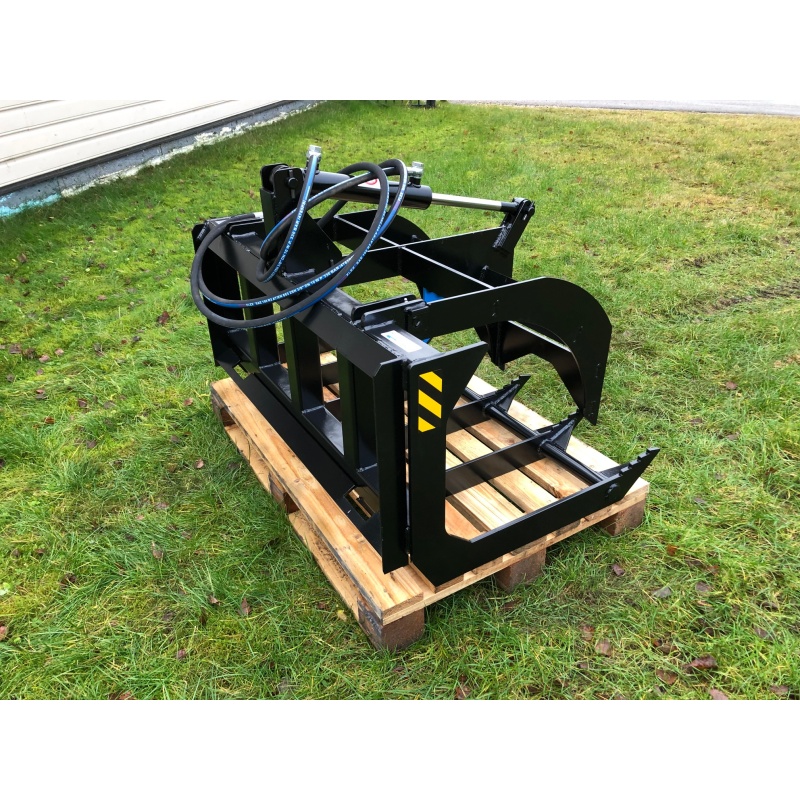

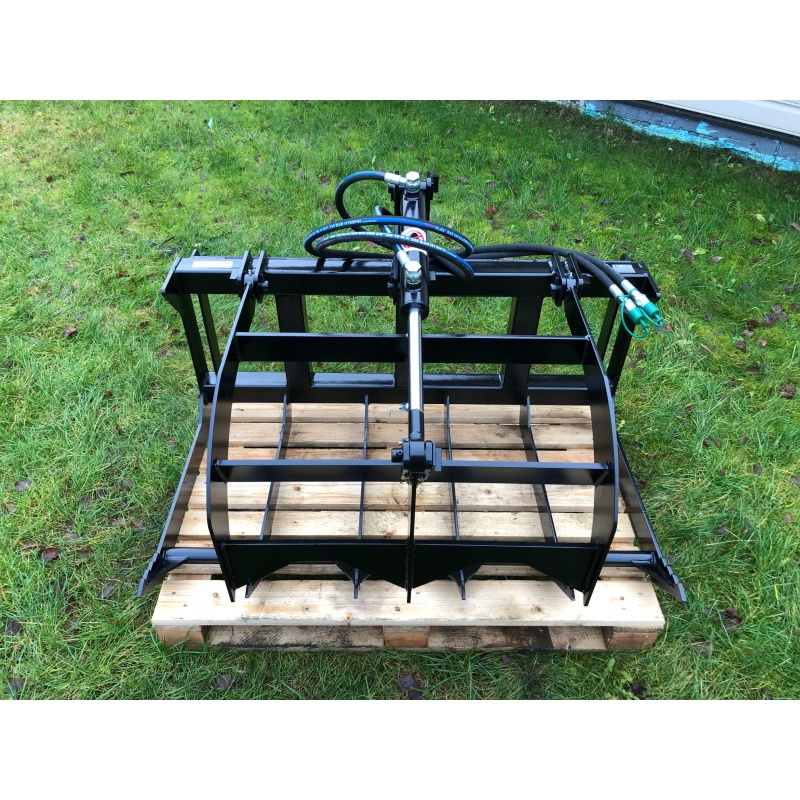

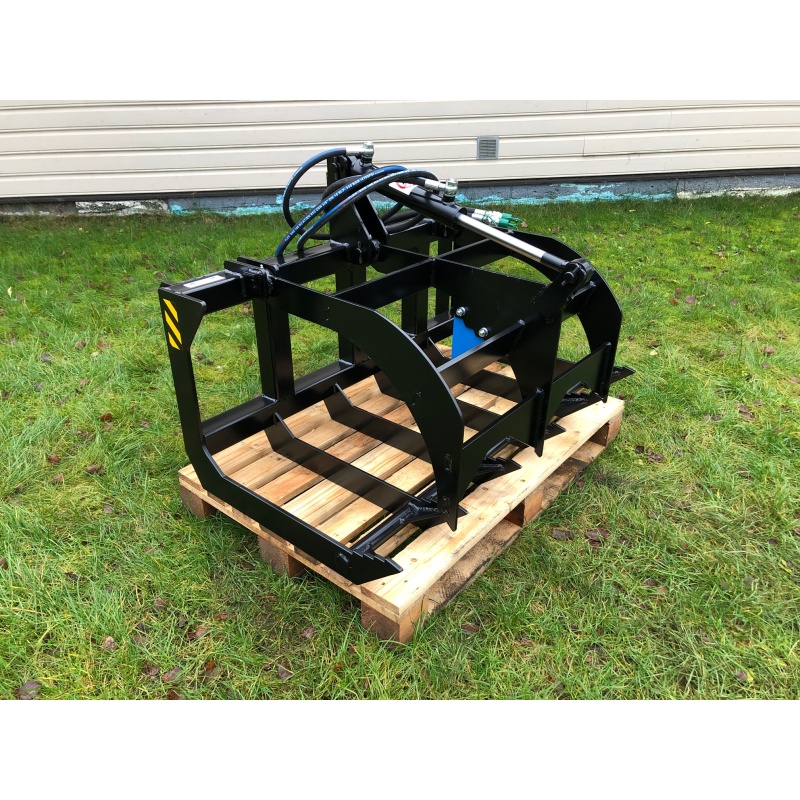

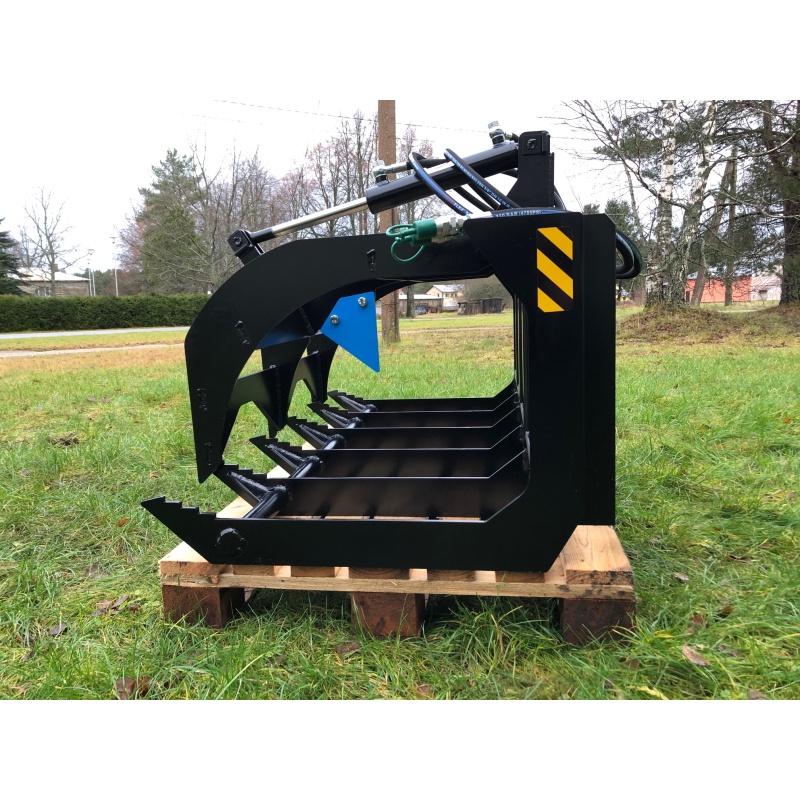

Log grapple for skid steer loader VLH 1000
Unit: tk
Qty: Out of Stock
Delivery time: 14-21 tööpäeva
Overall width 1200 mm, height 800 mm
Maximum opening range 800 mm
Hydraulic hoses included
We add fasteners according to the loader type
Grapple weight 135 kg
Designed for skid steer loader
NB! Various hydraulic quick coupler FASTER adapters (avant, multione, etc.) are not included!
Log grapple for skid steer loader VLH 1000 allows you to move trees, stones, plows or garbage. Custom-made grapples are designed for moving and transporting logs in forestry work and at the warehouse. Suitable for tractor loaders from 20 hp. The grapple is moved by one cylinder in the middle.
A grapple is very good for storage work at a company engaged in the production of firewood. The grapple can be used to lift raw material onto feed tables, unload loads. In addition, it is also good for sorting work by squeezing, for example, a single log between the grapple's beak and the lower branches. It is a good and durable tractor auxiliary tool for forestry work on a farm. Easy to use and suitable for many different tractors.
Attachments SKID, euro or according to the customer's desired loader type. The most common is the EURO attachment, but over the years more than 35 different attachment types have been used.
In most cases, the product is made to order. The product in stock is usually without attachments, we will add them later according to the loader type. When ordering from the e-shop, be sure to write the desired attachment type in the additional note box!
NB! Various FASTER adapters for hydraulic quick couplings (avant, multione, etc.) are not included!
Overall width 2200 mm, height 750 mm
Hydraulically rotatable
Complete with rubber blade, smooth metal blade and adjustable support legs
We add fasteners according to the loader type
Plow weight 330 kg
Designed for tractor loaders from 40 hp
2650,00 €
Overall width 1800 mm, height 500 mm
Hydraulically rotatable
Suspension
Includes rubber blade, smooth metal blade and adjustable support legs
We add fasteners according to the type of loader
Plow weight 145 kg
Designed for tractor loader
NB! Various hydraulic quick coupler FASTER adapters (avant, multione, etc.) are not included!
2150,00 €
*Overall dimensions: height 720 mm, depth 450 mm
*Maximum opening range: 700 mm
*Max. permissible mounting width for TKA 1200 model: 950 mm
*Hydraulic hoses included
*Weight: 145 kg
*Capacity: 0.23 m³
*Designed for compact tractor loaders
Note: Various FASTER hydraulic quick-connect adapters (Avant, MultiOne, etc.) are not included!
1650,00 €
*Overall dimensions: height 720 mm, depth 620 mm
*Maximum opening range: 700 mm
*Max. permissible mounting width for TKA 1200 model: 950 mm
*Hydraulic hoses included
*Weight: 160 kg
*Capacity: 0.3 m³
*Designed for compact tractor loaders
NB! Various hydraulic quick-connect adapters (Faster, Avant, Multione, etc.) are not included!
1900,00 €
*Overall width 2400 mm, height 800 mm, depth 950 mm
*Mounting brackets added according to loader type
*Bucket weight 550 kg
*Capacity 1.5 m³
*Designed for tractor loaders
