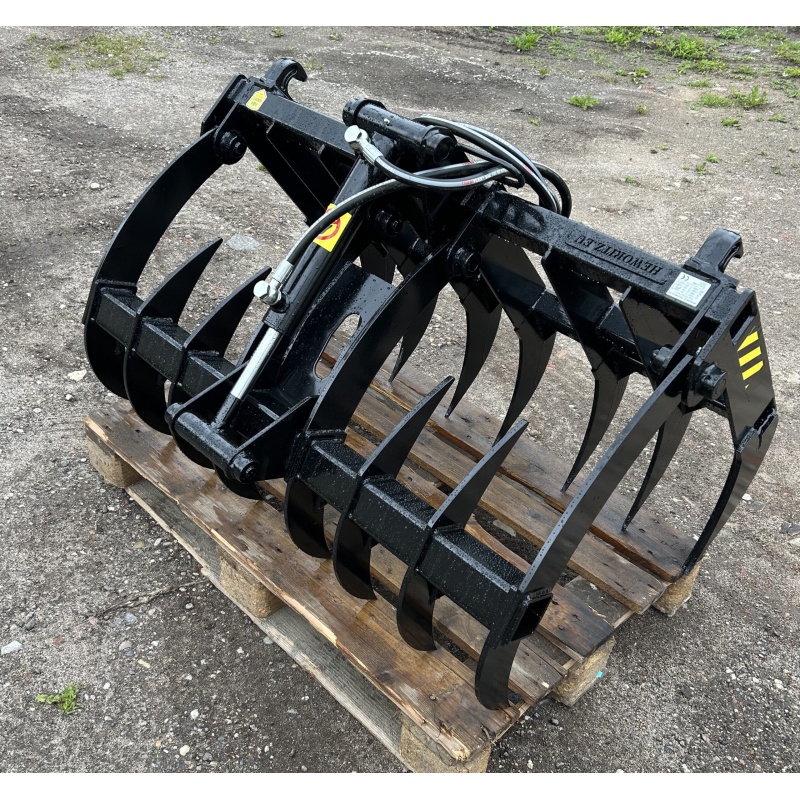

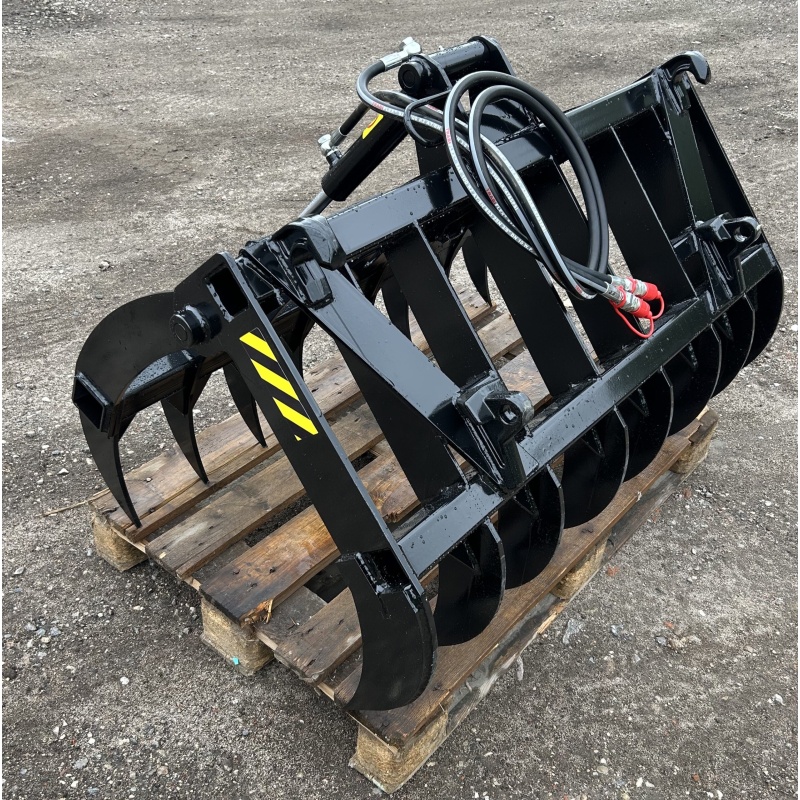

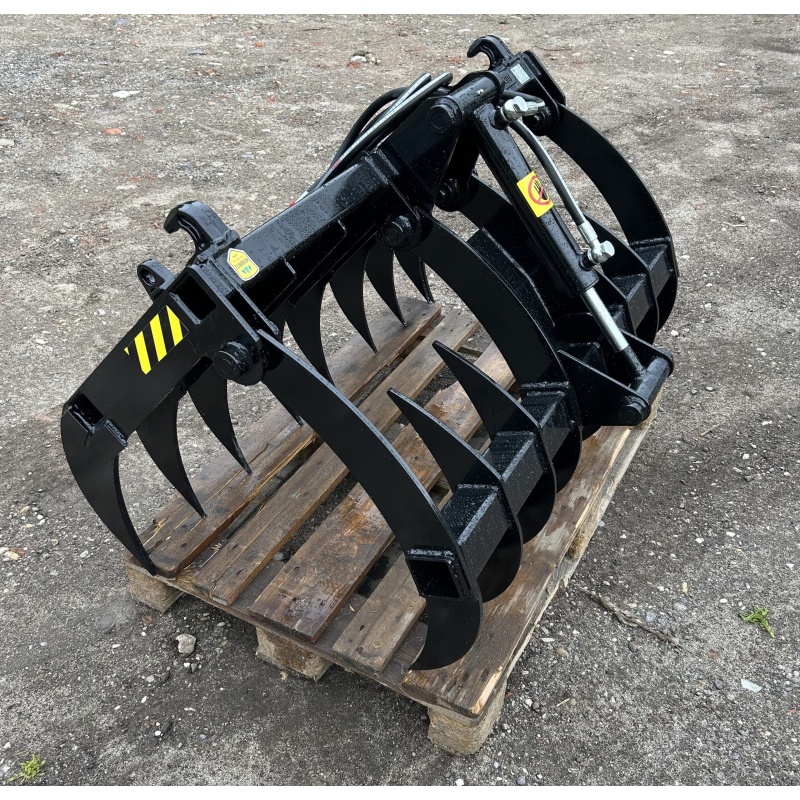

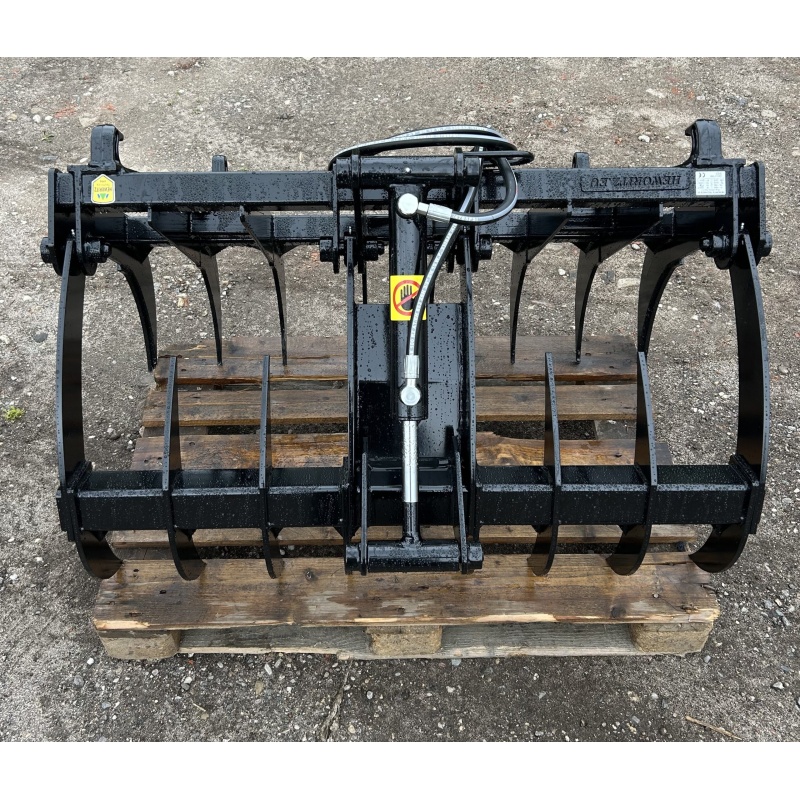

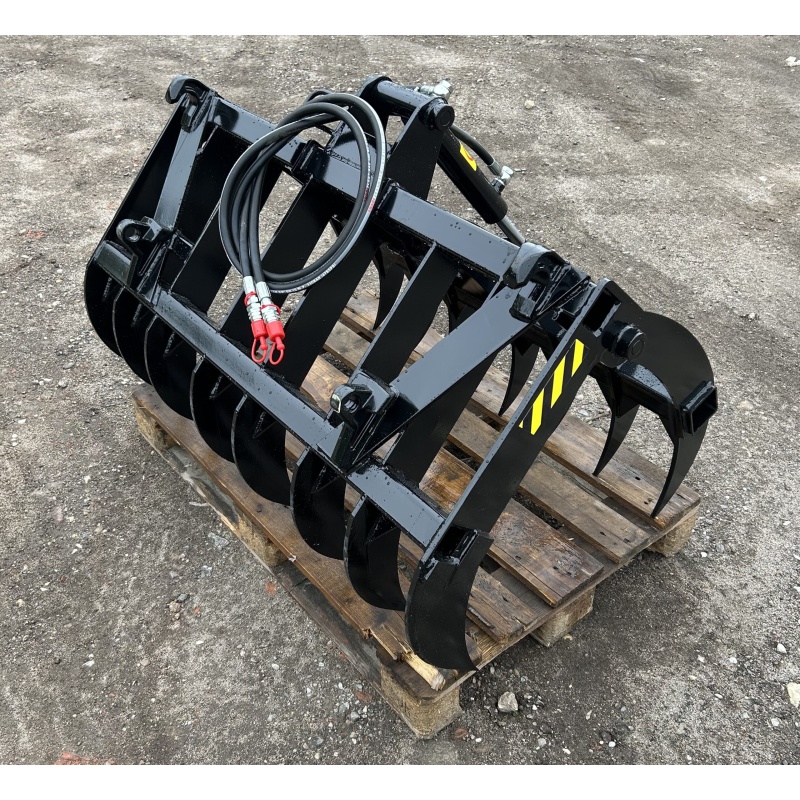

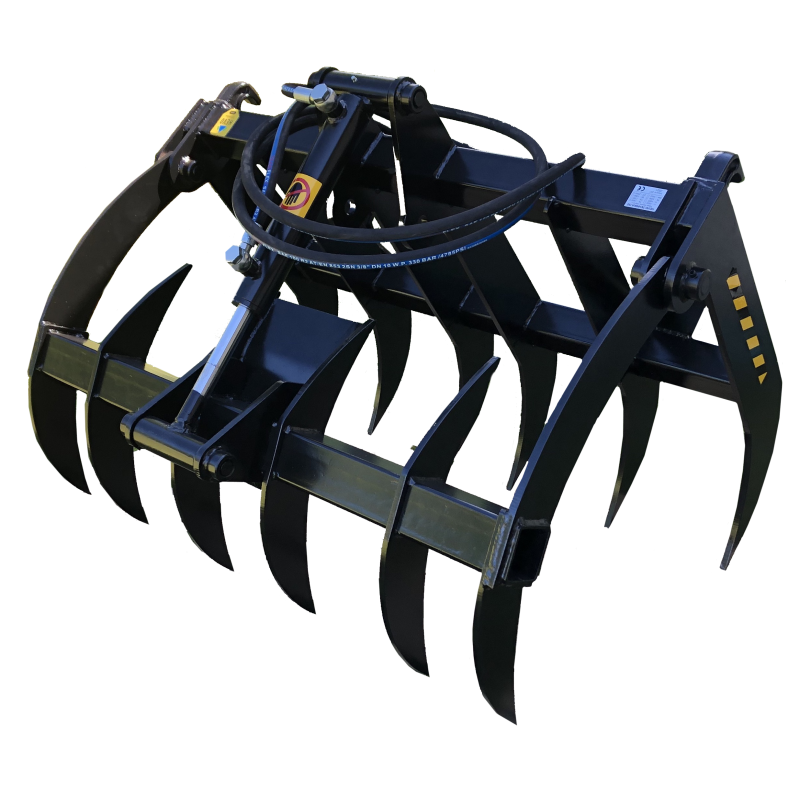

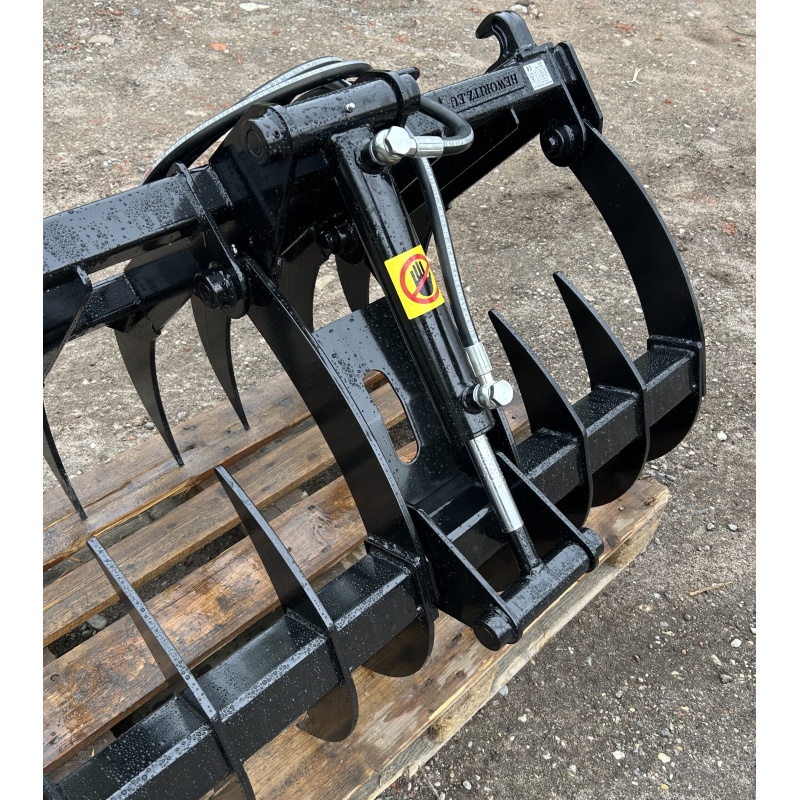

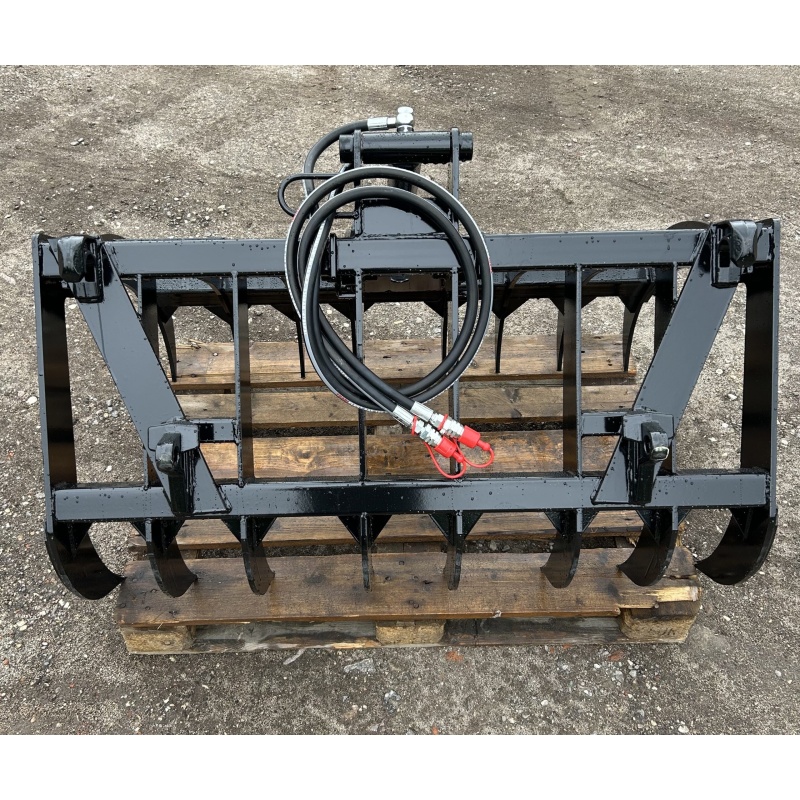

Light-duty rake-grapple KRH 1200
Unit: tk
Qty: In Stock
Delivery time: 2-5 tööpäeva
Ask for a quote for a shorter grapple too! info@trabiflex.com
Width 1200 mm and height 800 mm
Maximum opening range 925 mm
Hydraulic hoses included
HARDOX tine ends
We add fasteners according to the loader type
Weight according to 145 kg
Designed for tractor loader
NB! Various hydraulic quick-connect FASTER adapters (avant, multione, etc.) are not included!
The light-duty rake-grapple KRH 1200 is designed to be attached to a tractor loader with a quick-connect fastener. Allows you to pry stones out of the ground, uproot lighter roots, rake up branches and debris and gather them into a pile. It is also possible to move trees, stones, plows or garbage with a rake-grapple.
The light rooting rake-grapple model KRH 1200 is very good for landscaping and maintenance work in companies that deal with this. It is also a necessary tool in a home farm. The grapple can be used to lift raw material onto feed tables and unload loads. It is a good and durable tractor auxiliary tool for forestry work on a farm. Easy to use and suitable for many different tractors.
The ends of the grapple tine are made of HARDOX steel, which ensures their strength and wear resistance. Attachments SKID, euro or according to the type of loader desired by the customer. Suitable for tractor loaders from 15 hp -60 hp. The grapple is moved by one cylinder in the middle. Attachments can be added according to the type of loader. The most common is the EURO attachment, but over the years more than 35 different attachment types have been used.
PS! In most cases, the product is made to order. Products in stock usually come without attachments, we will add them later according to the loader type. The attachment type must be determined before ordering.
NB! Various hydraulic quick coupler FASTER adapters (avant, multione, etc.) are not included!
1847,60 €
Small series plow end extensions
Right and left side
Suitability (PRO 2000, PRO1800, TR 1500, TR 1800)
Bolt-on
Two extensions together make the plow 500mm wider
Rubber blades and metal blades on the side
558,00 €
Overall width 1500 mm, height 750 mm, depth 740 mm
Maximum bucket opening 870 mm
Hydraulic hoses included
Mounting brackets added according to loader type
Weight 175 kg
Capacity 0.55 m³
Designed for compact tractor loaders
Note: Various FASTER hydraulic quick-connect adapters (Avant, MultiOne, etc.) are not included!
1891,00 €
Overall width: 1800 mm; height: 750 mm; depth: 740 mm
Maximum bucket opening: 870 mm
Hydraulic hoses included
Mounting brackets added according to loader type
Weight: 215 kg
Capacity: 0.7 m³
Designed for compact tractor loaders
Note: Various hydraulic quick-connect adapters (Faster, Avant, Multione, etc.) are not included!
2238,20 €
*Fork length: 1200 mm
*Fork profile: 100 x 40 x 1200 mm (2500 kg capacity)
*Frame width: 1100 mm
*Product weight: 150 kg
*Mounting types (EURO, SKID, or other types upon request)
1209,00 €
