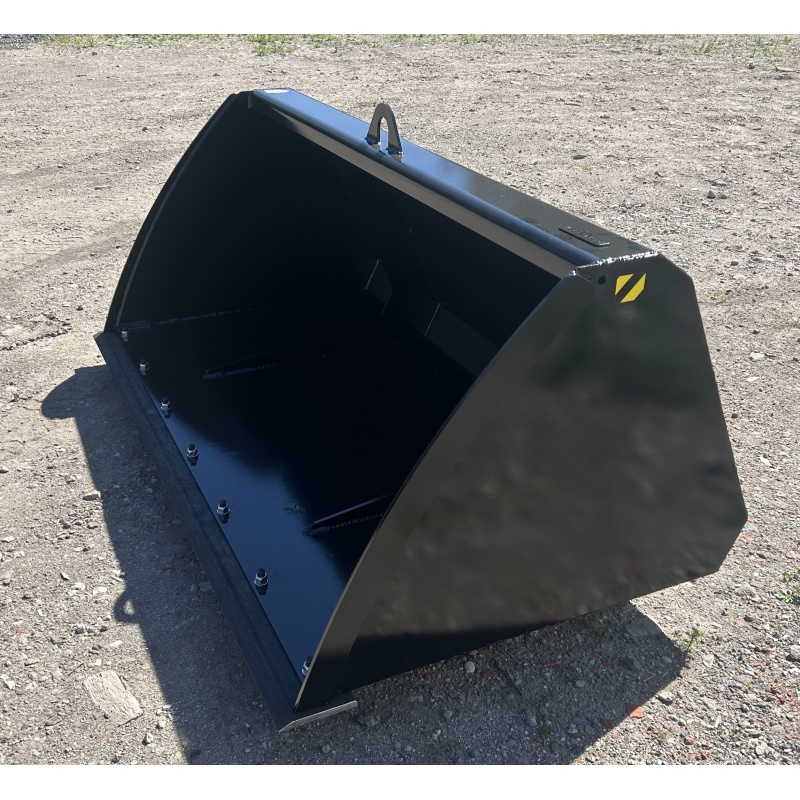

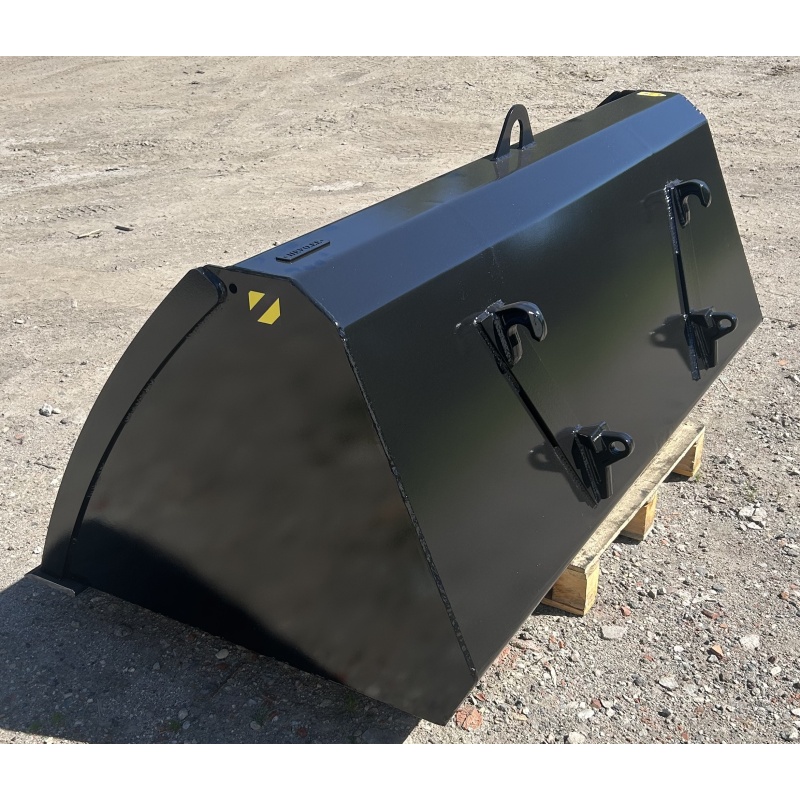

High-capacity loader bucket, 3 m³
Unit: tk
Qty: Not available
Delivery time: Küsi saadavust ja hinda
*Overall width 2500 mm, height 1080 mm, depth 1300 mm
*Mounting brackets added according to loader type
*Bucket weight 800 kg
*Capacity 3.0 m³
*Designed for tractor loaders
The 3 m³ high-capacity loader bucket is suitable for various loaders and tractors, enabling large-scale loading and material handling operations. The bucket features a robust design and is suitable for professional use.
The 3 m³ high-capacity loader bucket is equipped with a replaceable bolted cutting edge; we use a special wear-resistant BRUXITE 500 profiled edge for this purpose. As the buckets are made to order, we can customize the mounting brackets according to the client's requirements.
Other sizes are also available, and if necessary, we can manufacture a custom bucket tailored exactly to your needs.
3224,00 €
Height 105 mm, thickness 8 mm, holes 12 mm
Hole spacing 157.14 mm
125,00 €
Height 170 mm, thickness 20 mm, holes 18 mm
Hole spacing 198.33 mm
248,00 €
Width 720 mm, depth 560 mm, height 460 mm
Hardox blade
Fixation according to the type of loader
Hydraulic additional teeth
Weight 85 kg
NB! Various hydraulic quick coupler FASTER adapters (avant, multione, etc.) are not included!
1300,00 €
Overall width 2500 mm, height 750 mm
Hydraulically rotatable
Suspension
Complete with rubber blade, smooth metal blade and adjustable support legs
We add attachments according to the loader type
Plow weight 360, 380 kg
Designed for tractor loaders from 40 hp
It is possible to add SKID, euro or attachments according to the customer's loader type to the plow. The most common is the EURO attachment, but over the years there have been over 35 different attachment types. The product is usually made to order. The stock product is usually without attachments, we will add them later according to the loader type. When ordering from the e-shop, be sure to write the desired attachment type in the additional note box!
3500,00 €
